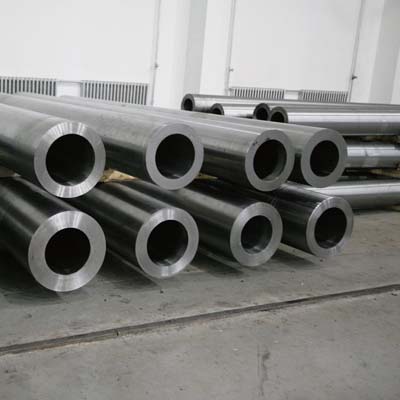

GB8163-2008 Seamless Pipe, 27SiMn, 8 Inch, SCH 160, 6M, BE
Key Specifications / Features
Model No.: DB-AS-SMLS-87 Hits: 231
China GB8163-2008 Seamless Pipe Manufacturer Derbo offers GB8163-2008 Seamless Pipe, 27SiMn, 8 Inch, 6M, SCH 160, Anti Rust Oiled Surface, BE Ends.
Request a quote
Share
Tags
Detail Information
Type: Seamless Pipe.
Material: 27SiMn.
W.T: SCH.160.
Length: 6M.
Size: 8 Inch.
Standard: GB8163-2008.
Ends: Beveled Ends.
Surface Treatment: Anti Rust Oiled.
Material: 27SiMn.
W.T: SCH.160.
Length: 6M.
Size: 8 Inch.
Standard: GB8163-2008.
Ends: Beveled Ends.
Surface Treatment: Anti Rust Oiled.
| Chemical Composition and Mechanical Property For GB8163-2008 | |||||||||||||
| Steel Grade | Chemical Composition | Mechanical performance | |||||||||||
| C | Mn | P(Max) | S(Max) | Si | Ni(Max) | Cr | Mo | Tensile Strength (Min) |
Yield Strength (Min) |
Elongation |
|||
| (Min) | |||||||||||||
| ksi | Mpa | ksi | Mpa | % | |||||||||
| 27SiMn | 0.24-0.32 | 1.10-1.40 | 0.035 | 0.035 | 1.10-1.40 | 0.30 | 0.30 | 0.15 | 145 | 980 | 120 | 835 | 30 |
