FBE Coating Seamless Pipe, API 5L Gr.B, 8 Inch, SCH 40
Key Specifications / Features
Model No.: DB-CS-FBE Coating-84 Hits: 328

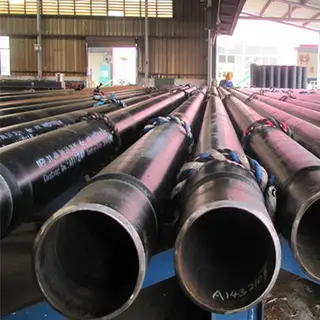

China FBE Coating Seamless Pipe Manufacturer Derbo offers FBE Coating Seamless Pipe, API 5L Gr.B, 8 Inch, 12 Meters, SCH 40, ASME B36.10, Beveled Ends.
Request a quote
Share
Tags
Detail Information
Type: FBE Coating Seamless Pipe.
Material: API 5L Gr.B.
W.T: SCH.40.
Size: 8 Inch.
Length: 12M.
Standard: API 5L PSL1, AWWA C213-2001 (Coating) ASME B36.10.
Ends: Beveled Ends.
Surface Treatment: FBE Coating.
Material: API 5L Gr.B.
W.T: SCH.40.
Size: 8 Inch.
Length: 12M.
Standard: API 5L PSL1, AWWA C213-2001 (Coating) ASME B36.10.
Ends: Beveled Ends.
Surface Treatment: FBE Coating.
| Minimum Thickness | |
| FBE Coating | Minimum Thickness of Normal(n)Coating, in μm |
| Internal | 350 |
| Eternal | 350 + 500 |
| Tolerance for wall thickness: | |
| Wall thickness t mm(in) |
Tolerances mm(in) |
| SMLS pipe | |
| ≤4.0（0.157） | +0.6(0.024) |
| +0.5(0.020) | |
| ＞4.0（0.157） to ＜25.0（0.984） | +0.150 t |
| -0.125 t | |
| ≥25.0（0.984） | +3.7(0.146) or 0.1 t, whichever is the greater |
| -3.0(0.120) or -0.1 t, whichever is the greater | |
| Welded pipe | |
| ≤5.0(0.197) | ±0.5(0.020) |
| ＞5.0(0.197) to＜15.0(0.591) | ±0.1 t |
| ≥15.0(0.591) | ±1.5(0.060) |
| Chemical Composition and Mechanical Property For PSL .1 | |||||||||||
| Steel Grade | Chemical components | Mechanical performance | |||||||||
| C(Max) | Mn(Max) | P | S(Max) | Tensile Strength (Min） | Yield Strength (Min) |
||||||
| Min. | Max. | psi | Mpa | psi | Mpa | ||||||
| Seamless Pipe | |||||||||||
| B | 0.28 | 1.20 | / | 0.030 | 0.030 | 60200 | 415 | 35500 | 245 | ||
