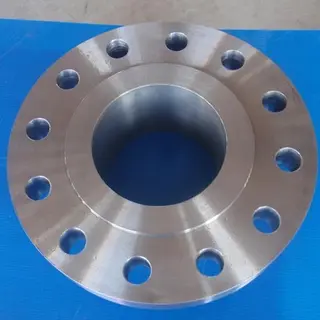

ASTM A105 RF WN Flange ASME B16.5 4 Inch SCH 40 300 LB Forged
Key Specifications / Features
Model No.: DB-WN Flange-665 Hits: 837
China ASTM A105 RF WN Flange Company Derbo Offers ASTM A105 RF WN Flange, ASME B16.5, 4 Inch, SCH 40, 300 LB, Forged, Sand Blast, for Pipe Connection.
Request a quote
Share
Tags
Detail Information
Type: RF WN Flange.
Standard: ASME B16.5.
Material and Grade: ASTM A105.
Size: 4 Inch, SCH 40, 300 LB.
Manufacture Method: Forged.
Surface Treatment: Oiled, Sand Blast, etc.
Application: for Pipe Connection.
Third Party Inspection: SGS, BV, INTERNET, etc.
Packing: Pallet, Seaworthy Wooden Case Packing or as Your Requirement.
Payment Terms: TT/LC, West Union, Paypal, O/A.
Delivery Time: 7-25 Days after Receiving the Deposit.
Standard: ASME B16.5.
Material and Grade: ASTM A105.
Size: 4 Inch, SCH 40, 300 LB.
Manufacture Method: Forged.
Surface Treatment: Oiled, Sand Blast, etc.
Application: for Pipe Connection.
Third Party Inspection: SGS, BV, INTERNET, etc.
Packing: Pallet, Seaworthy Wooden Case Packing or as Your Requirement.
Payment Terms: TT/LC, West Union, Paypal, O/A.
Delivery Time: 7-25 Days after Receiving the Deposit.
| Chemical Composition and Mechanical Property for ASTM A105 | |||||||||
| Steel Grade | Chemical Composition | Mechanical Performance | |||||||
| C(Max) | Mn | P(Max) | S(Max) | Si | Cu(Max) | Ni(Max) | Tensile Strength(Min） | Yield Strength(Min） | |
| Mpa | Mpa | ||||||||
| A105 | 0.35 | 0.6-1.05 | 0.035 | 0.04 | 0.1-0.35 | 0.4 | 0.4 | 485 | 250 |
