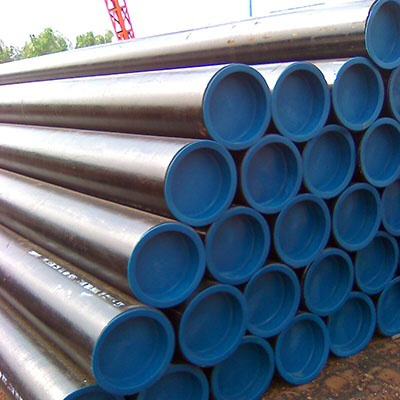

A106 GR.B CS Seamless Pipe, ASME B36.10 6 Inch, SCH40

Key Specifications / Features

Model No.: DB-CS-SMLS-9 Hits: 152

China A106 GR.B CS Seamless Pipe Manufacturer Derbo A106 GR.B CS Seamless Pipe, ASME B36.10, 6 Inch, SCH40, Oil Treatment.
Request a quote Share

Detail Information

Type: CS Seamless Pipe.
Materials: A106 GR.B.
Size: 6”*SCH40.
Surface Treatment: oil.
Standard: ASME B36.10.

ASTM A106 CHEMICAL COMPOSITION(%)
Steel Grade C
max
Si
max
Mn
max
P
max
S
max
Ni
Max
Cr
max
Cu
max
Mo
max
V
max
B 0.30 0.10 0.29-1.06 0.035 0.035 0.40 0.40 0.40 0.15 0.08

ASTM A106 MECHANICAL PROOPERTIES
Steel Grade Yield Strength
Min(Mpa)
Tensile Strength
Min(Mpa)
Elongation
Min(%)
B 240 415 AS PER
ASME SA106/ASTM A106
